硅胶加热片-常德思高技术有限公司

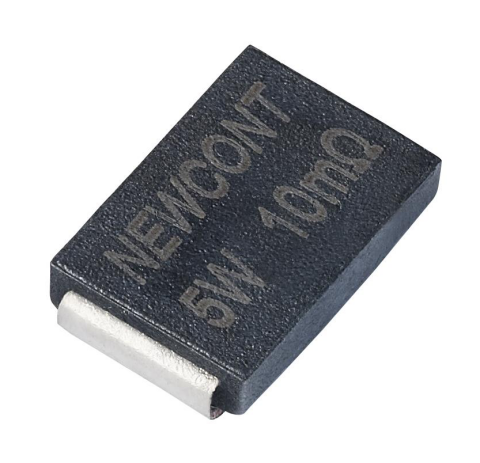

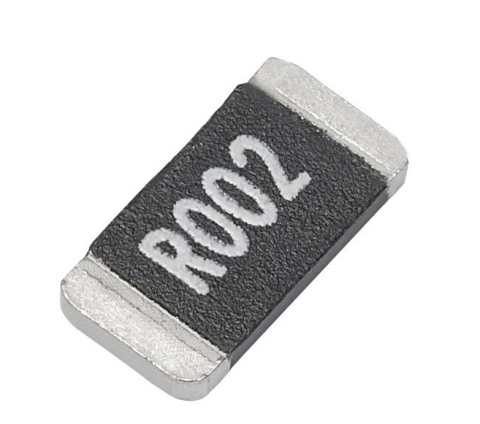

型号 Type	2512#系列	4527#系列
特性 Specifications	精密片式贴片电阻器PCR，又称片式/状电阻、电流检测电阻、采样电阻等。具有具有高功率、高精度、低感抗、低阻值、低温漂、小型等特性。阻燃性树脂（UL94 V-0）模压密封型。尺寸精度高，装载性、耐冲击性好。金属板端子电极结构，端子强度、焊接性优异。符合欧盟RoHS。广泛应用于燃油乘用车、新能源汽车（电池、充电桩管理系统）、变频家电、各类充电器等产品上。	精密片式贴片电阻器PCR，又称片式/状电阻、电流检测电阻、采样电阻等。具有具有高功率、高精度、低感抗、低阻值、低温漂、小型等特性。阻燃性树脂（UL94 V-0）模压密封型。尺寸精度高，装载性、耐冲击性好。金属板端子电极结构，端子强度、焊接性优异。符合欧盟RoHS。广泛应用于燃油乘用车、新能源汽车（电池、充电桩管理系统）、变频家电、各类充电器等产品上。
详情 Details	功率： ≤5W 电感值：＜ 5nH 温度系数：± 50PPM/℃ 阻值：2mΩ～50mΩ 阻值精度：±0.5%、±1% 过载：三倍功率＞5秒使用温度：-65℃～275℃	功率： ≤7W 电感值：＜ 10nH 温度系数：± 50PPM/℃ 阻值：2mΩ～50mΩ 阻值精度：±0.5%、±1% 过载：三倍功率＞5秒使用温度：-65℃～275℃

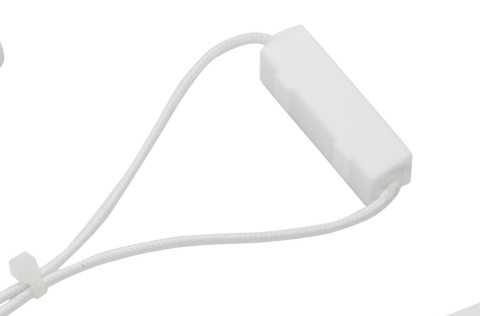

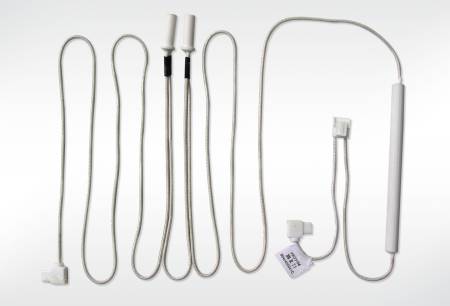

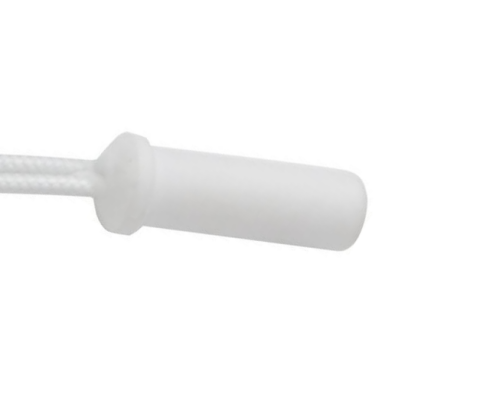

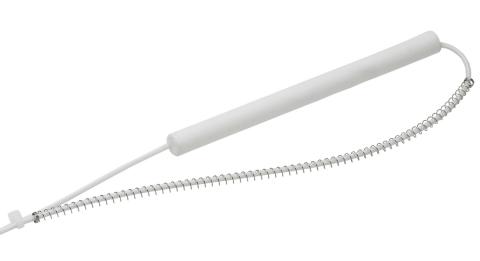

型号 Type	圆帽型瓷壳防冻电阻(Type T)	圆柱型瓷壳防冻电阻(Type R)	长方型瓷壳防冻电阻(Type Y/F)	混合型陶瓷防冻电阻	硅胶加热片	C型防冻加热电阻

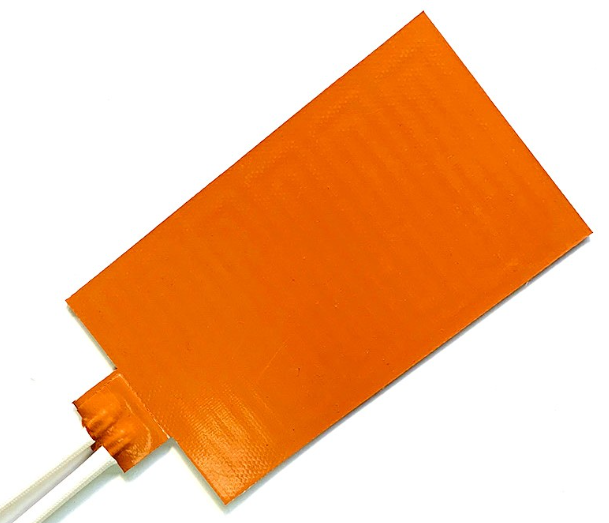

特性 Specifications	本型号防冻加热装置主要安装在燃气热水器进水、出水位置，防止水管冻裂。 Conform RoHS.	本型号防冻加热装置主要安装在燃气热水器燃烧箱位置水管上，防止水管冻裂。 Conform RoHS.	本型号防冻加热装置主要安装在燃气热水器水管上，防止水管冻裂。 Conform RoHS.	本型号防冻加热装置主要安装在燃气热水器内各位置，防止冻裂。可以根据需求定制不同组合方式。 Conform RoHS.	硅胶加热片（Silicone Heating Sheet）是由镍铬合金电热丝和硅橡胶高温绝缘布组成。它发热快、温度均匀、热效率高、强度高、使用方便、安全寿命长，不易老化。主要应用在燃气热水器、医疗保健、仪器仪表机械设备等管状，面状防冻、保温加热等。
详情 Details	最高使用电压: 250V 温度系数: ±400 PPM/℃ 绝缘电阻: 浸泡1H,DC500V, 20MΩ 耐压电压: AC1500 V/1min 使用温度范围: -30-150 ℃ 阻值精度：±5% 尺寸: Φ7.8×24.7 mm	最高使用电压: 250V 温度系数: ±400 PPM/℃ 绝缘电阻: 浸泡1H,DC500V, 20MΩ 耐压电压: AC1500 V/1min 使用温度范围: -30-150 ℃ 阻值精度：±5% 常用尺寸：Φ9×118，Φ10×130，Φ11×26	最高使用电压: 250V 温度系数: ±400 PPM/℃ 绝缘电阻: 浸泡1H,DC500V, 20MΩ 耐压电压: AC1500 V/1min 使用温度范围: -30-150 ℃ 阻值精度：±5% 尺寸: Φ12.5×10.5×35, Φ10.3×10.8×35.5mm	最高使用电压: 250V 温度系数: ±400 PPM/℃ 绝缘电阻: 浸泡1H,DC500V, 20MΩ 耐压电压: AC1500 V/1min 使用温度范围: -30-150 ℃ 阻值精度：±5%	绝缘电阻：≥5 MΩ 耐压强度： 1500v/5s 电压：220V/380V 功率偏差：±8%

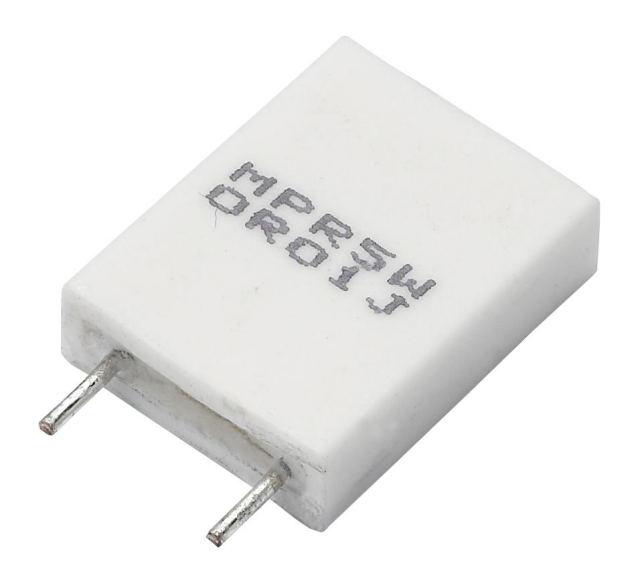

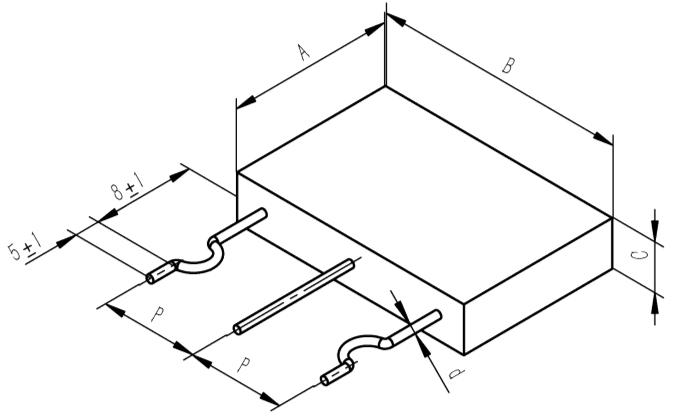

型号 Type	MPR5580R05J	金属片无感水泥电阻
特性 Specifications		耐热性优良，低温度系数，低噪声，高功率。 Excellent heat-durability, low temperature coefficient, low noise and high power. 低电感。 Low inductance. 引脚无铅，符合欧盟RoHS。 Products with lead free termination meet EU-RoHS requirements.
详情 Details	额定功率 Rated Power 5W+5W 5.2 公称阻值 Nominal Resistance 0.05Ω 5.3 电阻值容许误差 Resistance Tolerance ±5% 5.4 温度系数(ppm/℃） Temperature Coefficient of Resistance ±350 5.5 使用温度范围 Operating Temperature Range - 40℃ to +200℃	功率： 5W、5W+5W 温度系数：±350PPM/℃ 阻值：10mΩ～50mΩ 阻值精度：±5% 过载：三倍功率＞5秒工作温度：-40℃～200℃

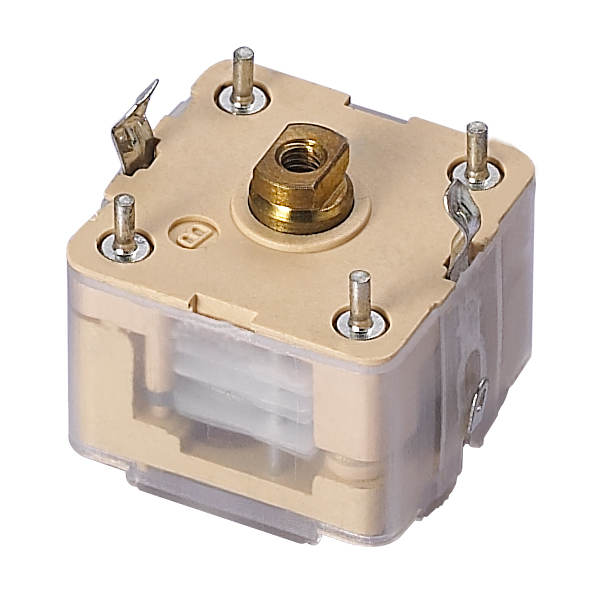

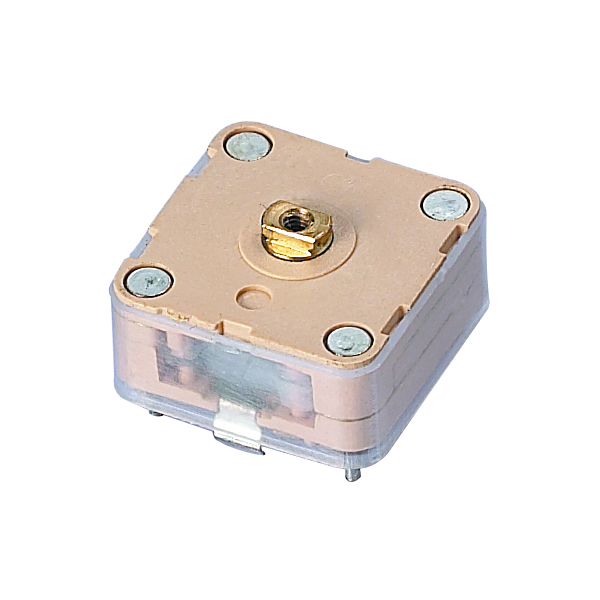

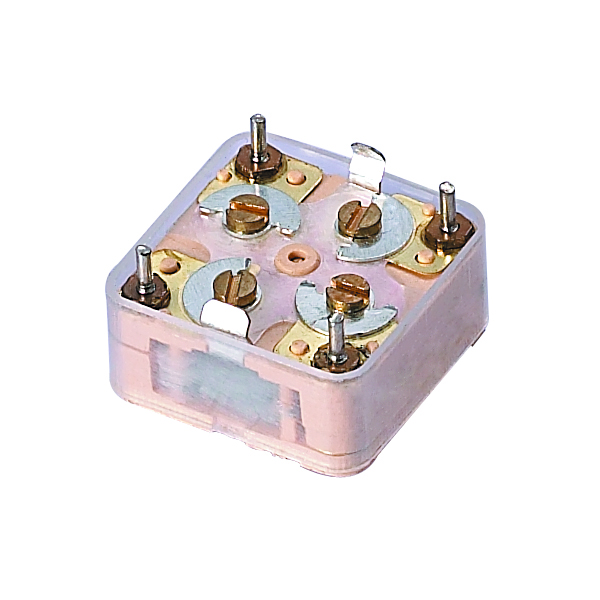

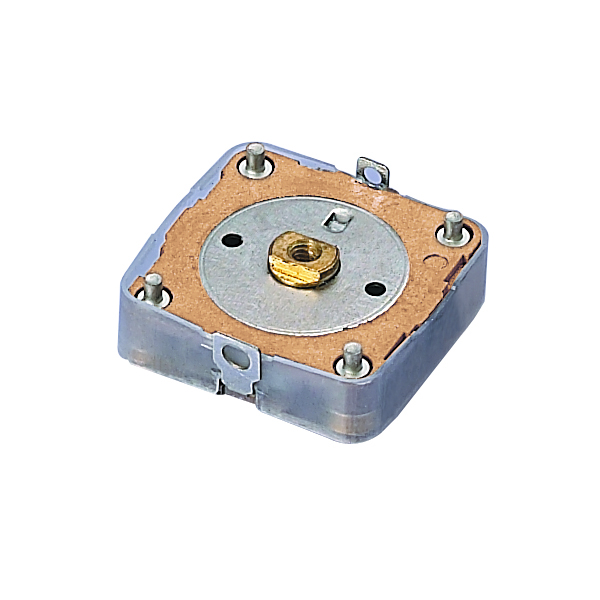

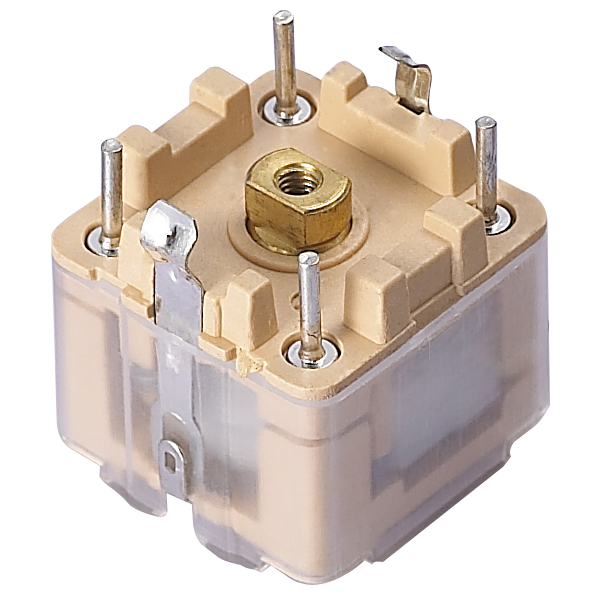

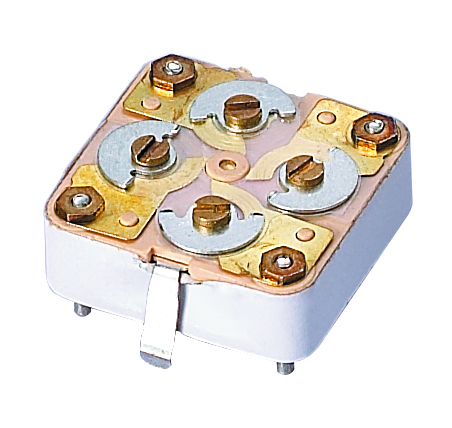

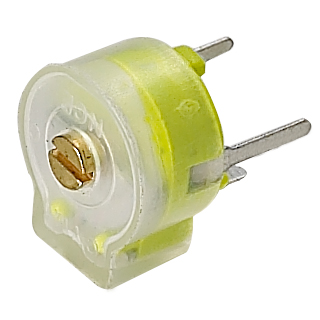

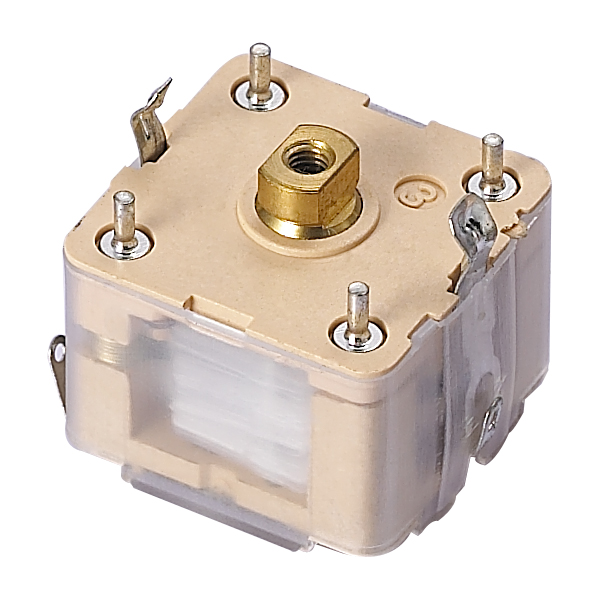

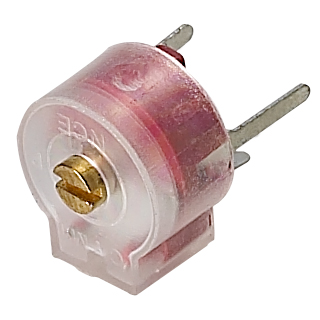

型号 Type	PTC02-09	TC03-050	PTC02-18	TC03-200	TCC3-060	TC03-300	TCC3-100	TCC3-300
特性 Specifications	AS well as applications to small sized electronic apparatus, this series is designed for easy handing and available with a variety of adjustment method(top, bottom, side and double side). Wide mounting sizes and types of adjustment available.	AS well as applications to small sized electronic apparatus, this series is designed for easy handing and available with a variety of adjustment method(top, bottom, side and double side). Wide mounting sizes and types of adjustment available. Sturdy mechanical structure resistance to vibration or shock.	AS well as applications to small sized electronic apparatus, this series is designed for easy handing and available with a variety of adjustment method(top, bottom, side and double side). Wide mounting sizes and types of adjustment available.	AS well as applications to small sized electronic apparatus, this series is designed for easy handing and available with a variety of adjustment method(top, bottom, side and double side). Wide mounting sizes and types of adjustment available. Sturdy mechanical structure resistance to vibration or shock.	Miniature and low profile capacitors. Color-coded case according to its capacitance range for easy visual identification. Mountable by an automatic placer. Reflow soldering applicable. Easy adjustment using a conventional screwdriver.	AS well as applications to small sized electronic apparatus, this series is designed for easy handing and available with a variety of adjustment method(top, bottom, side and double side). Wide mounting sizes and types of adjustment available. Sturdy mechanical structure resistance to vibration or shock.	Miniature and low profile capacitors. Color-coded case according to its capacitance range for easy visual identification. Mountable by an automatic placer. Reflow soldering applicable. Easy adjustment using a conventional screwdriver.	Miniature and low profile capacitors. Color-coded case according to its capacitance range for easy visual identification. Mountable by an automatic placer. Reflow soldering applicable. Easy adjustment using a conventional screwdriver.
详情 Details	Color: Red Cap. (Min.) : 4.0 pF max. Cap. (Max.): 9.0 pF more. Temp. Coe: N 100±300 ppm/℃ Q Factor 1MHhz Cmax: >300 CHARACTERISTICS Operating temperature range-10℃ to +70℃ Rated working voltage100VDC Dielectric withstanding voltage100VDC Insulation resistance100MΩ min/100 VDC Rotation torque50~350gf.cm	Color: Blue Cap. (Min.) : 2.0 pF max. Cap. (Max.): 5.0 to 5.50 pF Temp. Coe: NP 0±300 ppm/℃ Q Factor 1MHhz Cmax: >500 CHARACTERISTICS Operating temperature range: -25℃ to +85℃ Rated working voltage: 100VDC Dielectric withstanding voltage: 100VDC Insulation resistance: 10000MΩ min/100 VDC Rotation torque: 20~150gf.cm	Color: Yellow Cap. (Min.) : 4.0 pF max. Cap. (Max.): 18.0 pF more. Temp. Coe: N 100±300 ppm/℃ Q Factor 1MHhz Cmax: >300 CHARACTERISTICS Operating temperature range-10℃ to +70℃ Rated working voltage100VDC Dielectric withstanding voltage100VDC Insulation resistance100MΩ min/100 VDC Rotation torque50~350gf.cm	Color: Red Cap. (Min.): 5.5pF max. Cap. (Max.): 20.0 to 21.00pF Temp. Coe: NP 1200±500 ppm/℃ Q Factor 1MHhz Cmax: >500 CHARACTERISTICS Operating temperature range: -25℃ to +85℃ Rated working voltage: 100VDC Dielectric withstanding voltage: 100VDC Insulation resistance: 10000MΩ min/100 VDC Rotation torque: 20~150gf.cm	Color: Blue Cap. (Min.) : 2.5 pF max. Cap. (Max.): 6.0 pF Temp. Coe: NP 0±300 ppm/℃ Q Factor 1MHhz Cmax: >300 CHARACTERISTICS Operating temperature range-25℃ to +85℃ Rated working voltage100VDC Dielectric withstanding voltage220VDC Insulation resistance10000MΩ min Rotation torque15~100gf.cm	Color: Green Cap. (Min.): 6.5pF max. Cap. (Max.): 30.0 to 21.00pF Temp. Coe: NP 1200±500 ppm/℃ Q Factor 1MHhz Cmax: >500 CHARACTERISTICS Operating temperature range: -25℃ to +85℃ Rated working voltage: 100VDC Dielectric withstanding voltage: 100VDC Insulation resistance: 10000MΩ min/100 VDC Rotation torque: 20~150gf.cm	Color: White Cap. (Min.) : 3.5 pF max. Cap. (Max.): 10.0 to 10.50 pF Temp. Coe: N750 0±300 ppm/℃ Q Factor 1MHhz Cmax: >300 CHARACTERISTICS Operating temperature range-25℃ to +85℃ Rated working voltage100VDC Dielectric withstanding voltage220VDC Insulation resistance10000MΩ min Rotation torque15~100gf.cm	Color: Green Cap. (Min.) : 7.5 pF max. Cap. (Max.): 30.0 to 30.50 pF Temp. Coe: N 2200 0±500 ppm/℃ Q Factor 1MHhz Cmax: >300 CHARACTERISTICS Operating temperature range -25℃ to +85℃ Rated working voltage 100VDC Dielectric withstanding voltage 220VDC Insulation resistance 10000MΩ min Rotation torque 15~100gf.cm
